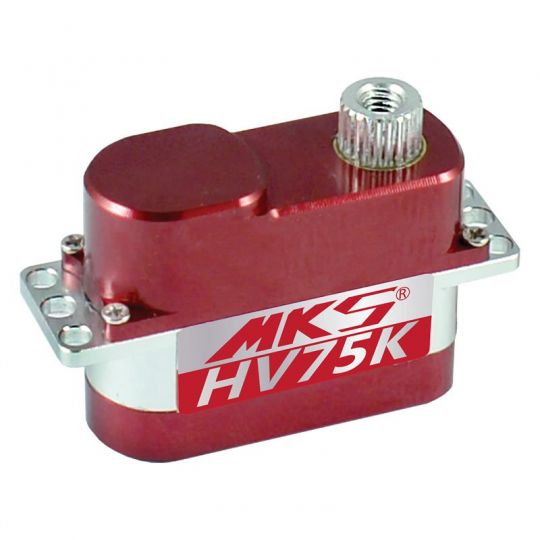

HV75K Digital Servo - Typ A

MTTEC S0022007 HV75K Digital Servo - Typ A

For DLG, HLG, F3K

Torque: 1.4 kg-cm (3.7V) / 2.3 kg-cm (6.0V) / 2.8 kg-cm (7.4V) / 3.3 kg-cm (8.2V)
Speed: 0.21s (3.7V) / 0.13s (6.0V) / 0.10s (7.4V) / 0.09s (8.2V)
Weight: 7.5 g (+0.1)

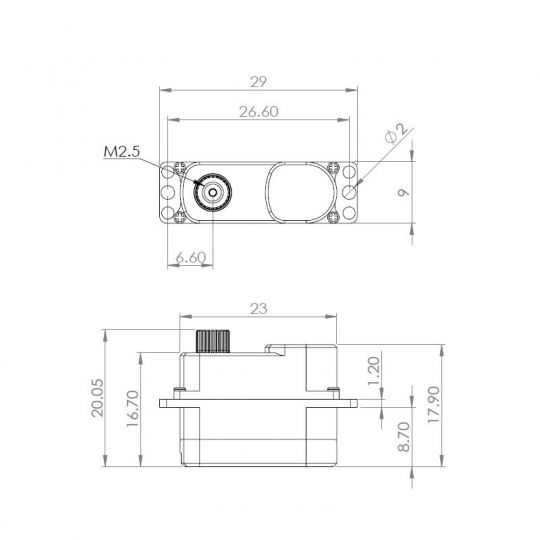

Dimension: 23 x 9 x 16.7 mm
Working Voltage: 3.7 ~ 8.2 V DC Volts  (for 2S ~ 1S LiPo)
Working frequency: 1520µs / 333Hz
Dead Band: 0.001 ms (Default)
Bearing: 1* ball bearing + 1*Oil-retaining bearing + 2*Jewel bearing
Motor: Coreless Motor
Gear: 7075 Chrome-Titanium alloy gear
Case: 6061 Aluminum CNC Casing
