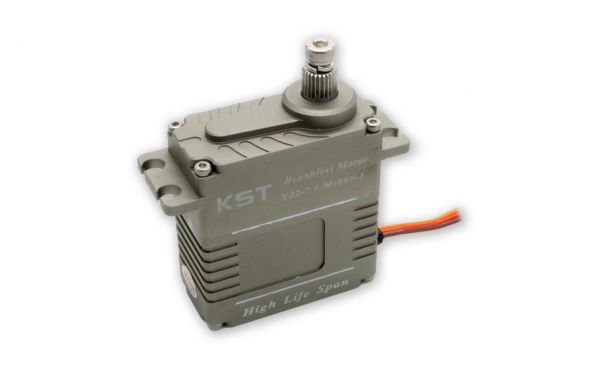

KST KST-0411 X22-7.4-M-860-1 V8.0 HLS
Produktinformationen "KST X22-7.4-M-860-1 V8.0 70kg/cm@7,4 Volt"
X22-7.4-M-860-1 HLS / PWM
Operating Data:
Signal: PWM
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Stalling Torque: 7,0N.m@7,4V
Rated Torque: 2,2N.m@7.4V
Stalling Current: 7,50 A
Rated Current: 1,98
No load Speed: 0,15sec/60°@7,4V
Rated Speed 0,21sec/60°@7.4V
Working Frequency: 1500us/333Hz
Devault Travel Angel: +/- 100°= 200° Total when 500-2500 us
Temperature Range: -10°C - +65°C
Programmable: Yes
Soft sart: Programmable
Case Material: Aluminum Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Contactless
Output Shaft: 25T-8
Case Dimensions: 45mm*22mm*52mm±0.2mm
Weight: 128g±10%
Ball Bearing: 6 BB
Programmierbar mit KST-Tool #1
Bitte beachten Sie die Servo-Spezifikation des Modell Herstellers bei der Auswahl der Servos.
