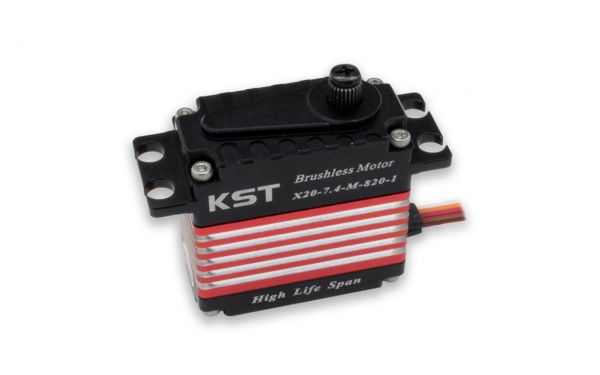

X20-7.4-M-820-1 V8.0 HLS

KST KST-2201 X20-7.4-M-820-1 V8.0 HLS

X20-7.4-M-820-1 HLS V8.0 PWM 3N/m@7,4Volt

Produktinformationen "X20-7.4-M-820-1 HLS V8.0 PWM 3N/m@7,4Volt"
KST X20-7.4-M-820-1 V8.0 HLS / PWM

Operating Data:
Signal:PWM
Rated Voltage:DC7.4V
Voltage Range:DC6.0V-8.4V
Stalling Torque:3,0N.m@7,4V
Rated Torque:0,7N.m@7.4V
No load Speed:0.09sec/60°@7,4V
Rated Speed0,17sec/60°@7.4V
Working Frequency:1500us/333Hz
Temperature Range:-10?……+65?
Case Material:Aluminum Alloy
Motor Type:Brushless DC Motor
Gear Set Material:Hardened Steel
Position Sensor:Contactless
Case Dimensions:40mm*20mm*40mm±0.2mm
Weight:75g±10%
Ball Bearing:6 BB

Programmierbar mit KST-Tool #1

Bitte beachten Sie die Servo-Spezifikation des Modell Herstellers bei der Auswahl der Servos.

https://kst-servo-shop.de/media/pdf/a7/05/62/KST_2201_X20_7_4_M_820_1V8_0HLSEU_KonformitaetserklaerungUdbszw3c9wOMg.PDF

https://kst-servo-shop.de/media/pdf/3e/a1/6f/KST_2201_X20_xx_M_820_x_HLS_Datenblatt_12_2021_de_.pdf

https://kst-servo-shop.de/media/archive/3f/ab/39/KST_2201_X20_7_4_M_820_DM_stepfile.zip
