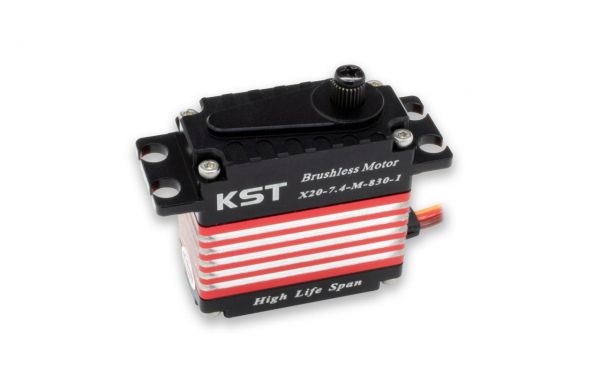

KST X20-7.4-M-830-1 HLS / PWM

KST KST-2203 X20-7.4-M-830-1 V8.0 HLS

X20-7.4-M-830-1 HLS / PWM

Produktinformationen "X20-7.4-M-830-1 HLS / PWM"

Operating Data:
Signal:PWM
Rated Voltage:DC7.4V
Voltage Range:DC6.0V-8.4V
Stalling Torque:3.8N.m@7.4V
Rated Torque:0.9N.m@7.4V
Stalling Current:4.95A
Rated Current:1.25A
No-load Speed:0.13sec/60°@7.4V
Rated Speed:0.22sec/60°@7.4V
Working Frequency:1520us/333Hz
Default Travel Angle:± 100°=200°Total When 500us-2500us
Temperature Range:10°C-65°C
Case Material:Aluminum Alloy
Motor Type:Brushless DC Motor
Gear Set Material:Hardened Steel
Position Sensor:Contactless
Case Dimensions:40mm*20mm*40mm±0.2mm
Weight:80g±10%
Ball Bearing:6 BB

Programmierbar mit KST-Tool #1

Bitte beachten Sie die Servo-Spezifikation des Modell Herstellers bei der Auswahl der Servos.

https://kst-servo-shop.de/media/pdf/9d/1f/b1/KST_2203_X20_xx_M_830_x_HLS_DB_12_2021_de_.pdf

https://kst-servo-shop.de/media/pdf/93/4b/4f/KST_2203_X20_7_4_M_830_1V8_0EU_Konformitaetserklaerung0vCs8hq6krmQE.PDF
