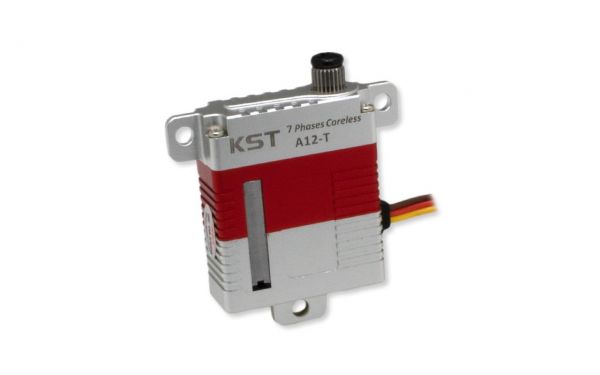

KST A12-T V8.0 20kg/cm@8,4 Volt Softstart

KST KST-1015 A12-T V8.0 / Softstart

 Produktinformationen "KST A12-T V8.0 20kg/cm@8,4 Volt Softstart"
KST A12-T Technische Details:

Signal: PWM
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Torque 1.6N.m@6.0V
1.8N.m@7.4V
2.0N.m@8.4V
Speed 0.15sec/60°@6.0V
0.13sec/60°@7.4V
0.12sec/60°@8.4V
Working Frequency: 1520us/333Hz
Default Travel Angle: ±60° = 120° Total
Temperature Range: -10°C……+60°C
Soft Start: Yes
Programable: Yes
Case Material: Aluminum Alloy
Motor Type; 7 Phases Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Contactless
Case Dimensions: 30mm*12mm*35.5mm±0.2m
Weight: 32g±10%

Programmierbar mit KST-Tool 1

https://kst-servo-shop.de/media/pdf/b6/3a/1f/KST_1015_A12_TV8_0EU_KonformitaetserklaerungbbAqrHLHudBnS.PDF
https://kst-servo-shop.de/media/pdf/da/cd/4d/KST_1015_A12_TV8_Datenblatt_02_2022_de.pdf
