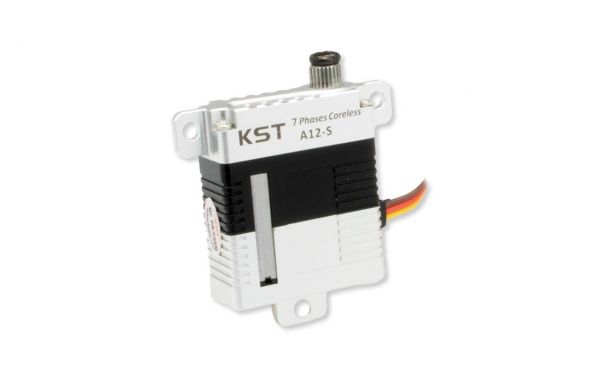

KST A12-S V8.0 13,5kg/cm@8,4 Volt Softstart

KST KST-1017 A12-S V8.0 / Softstart

 Produktinformationen "KST A12-S V8.0 13,5kg/cm@8,4 Volt Softstart"
Signal: PWM
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Torque 1.1N.m@6.0V
1.28N.m@7.4V
1,35N.m@8.4V
Speed 0.11sec/60°@6.0V
0.09sec/60°@7.4V
0.08sec/60°@8.4V
Working Frequency: 1520us/333Hz
Default Travel Angle: ±60° = 120° Total
Temperature Range: -10°C……+60°C
Soft Start: Yes
Programable: Yes
Case Material: Aluminum Alloy
Motor Type; 7 Phases Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Contactless
Case Dimensions: 30mm*12mm*35.5mm±0.2m
Weight: 32g±10%

Programmierbar mit KST-Tool 1

https://kst-servo-shop.de/media/pdf/2e/69/42/KST_1017_A12_SV8_Datenblatt_02_2022_de_.pdf
https://kst-servo-shop.de/media/pdf/38/5d/e7/KST_1017_A12_SV8_0EU_Konformitaetserklaerung6c1dkixBFhOtk.PDF
