CM3510MG V6.0 35kgf.cm@8,4V

 Produktinformationen "CM3510MG V6.0 35kgf.cm@8,4V"

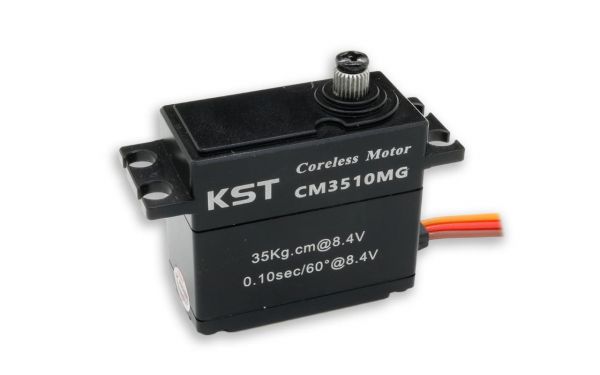

CM3510MG V6.0

Rated Voltage: DC7.4V
Voltage Range: DC4.8V-8.4V

Stalling Torque: 20Kgf.cm@4.8V
25Kgf.cm@6.0V
30Kgf.cm@7.4V
35Kgf.cm@8.4V

Speed: 0.20sec/60°@4.8V
0.15sec/60°@6.0V
0.13sec/60°@7.4V
0.10sec/60°@8.4V

Start Current: 2.10A@4.8V
2.90A@6.0V
3.30A@7.4V
3.65A@8.4V

Working Frequency: 1520us/333Hz
Default Travel Angle: ±50° =100° Total
Temperature Range: -10?……+65?
Soft Start: Programmable
Motor Type: Coreless DC Motor
Gear Set Material: Metal Gear
Position Sensor: Potentiometer
Ball Bearing: 2BB
Waterproof: IP65
Case Dimensions: 40.5mm*20mm*38mm±0.2mm
Weight: 70g±10%

https://kst-servo-shop.de/media/pdf/14/7b/60/KST_2401_CM3510MGV6EU_Konformitaetserklaerung.pdf

https://kst-servo-shop.de/media/pdf/08/0f/9c/KST_2401_CM3510MG_V6_Datenblatt_05_2023_de.pdf
