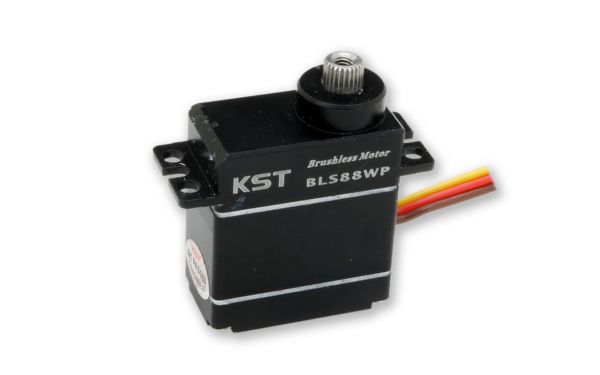

KST BLS88WP V8.0 8.5Kgfcm@8.4V IP67

KST KST-0921 KST BLS88WP V8.0 8.5Kgfcm@8.4V IP67

Produktinformationen "KST BLS88WP V8.0 8.5Kgfcm@8.4V IP67"
KST BLS88WP V8.0 Technische Details:

Specification
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Torque: 7.5Kgf.cm@6.0V , 8.0Kgf.cm@7.4V , 8.5Kgfcm@8.4V
Speed: 0.09sec/60°@6.0V ,  0.08sec/60°@7.4V , 0.07sec/60°@8.4V
Working Frequency: 1520?s/333Hz
Default Travel Angle: ±50°= 100°Total
Temperature Range: -20°C.....+65C
Soft Start: Programable
Programmable: Yes
Case Material: Aluminum Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Waterproof: IP67
Case Dimensions: 24mm*13mm*30mm±0.2mm
Weight: 21g±10%
