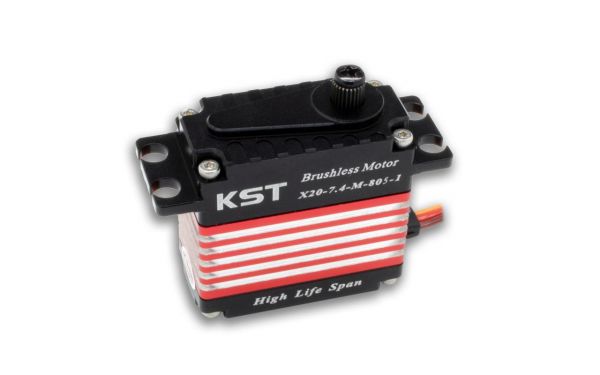

X20-7.4-M-805-1 HLS (High Life Span) 1.2 N.m@ 8.4 Volt IP65

KST KST-2207 X20-7.4-M-805-1 HLS (High Life Span) 1.2 N.m@ 8.4 Volt IP65

Produktinformationen "X20-7.4-M-805-1 HLS (High Life Span) 1.2 N.m@ 8.4 Volt IP65"
KST X20-7.4-M-805-1 V8.0 HLS

Technische Daten:

Signal: PWM
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Stalling Torque: 0.9N.m@6.0V
1.1N.m@7.4V
1.2N.m@8.4V
Speed: 0.040sec/60°@6.0V
0.035sec/60°@7.4V
0.030sec/60°@8.4V
Working Frequency: 760us/560Hz
Temperature Range: -10?……+65?
Case Material: Aluminum Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Contactless
Case Dimensions: 40mm*20mm*40mm±0.2mm
Weight: 75g±10%
Ball Bearing: 6 BB
Schutzklasse: IP65

Verfügbare Downloads:

https://kst-servo-shop.de/media/pdf/04/e6/7a/KST_2207_X20_7_4_M_820_1_HLS_DB_08_2021_de.pdf
