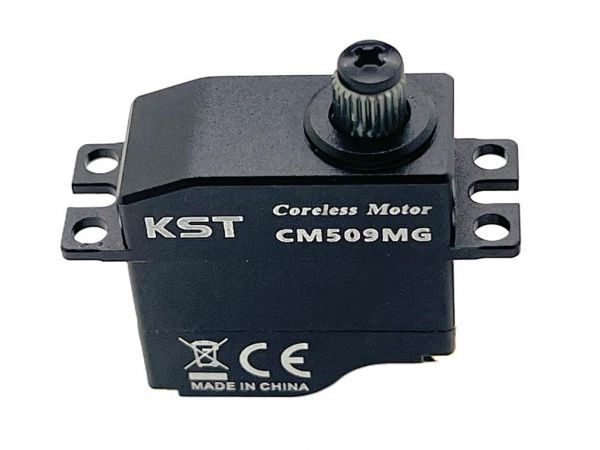

KST CM509MG V6.0 6.0kgf.cm@8,4V

KST KST-2403 KST CM509MG V6.0 6.0kgf.cm@8,4V

Produktinformationen "KST CM509MG V6.0 6.0kgf.cm@8,4V"
KST CM509MG Technische Details:

Rated Voltage: DC7.4V
Voltage Range: DC4.8V-8.4V
Stalling Torque: 3.6Kgf.cm@4.8V
                         4.8Kgf.cm@6.0V
                         5.5Kgf.cm@7.4V
                         6.0Kgf.cm@8.4V
Speed:              0.13sec/60°@4.8V
                         0.11sec/60°@6.0V
                         0.09sec/60°@7.4V
                         0.08sec/60°@8.4V
Stalling Current: 0.95A@4.8V
                         1.15A@6.0V
                         1.35A@7.4V
                         1.60A@8.4V
Working Frequency: 1520us/333Hz
Default Travel Angle: ±50° =100° Total
Temperature Range: -10?……+65?
Soft Start: Yes
Programmable: Yes
Motor Type :Coreless Motor
Case Material: Aluminum Alloy
Gear Set Material: Metal Gear / Output Shaft AI7075
Position Sensor: Potentiometer
Ball Bearing: 2BB
Case Dimensions:23mm*11mm*24mm±0.2mm
Weight:15g±10%

Verfügbare Downloads:

https://kst-servo-shop.de/media/pdf/65/73/5a/KST_2403_CM509MG_Datenblatt_11_2023_de.pdf
https://kst-servo-shop.de/media/pdf/9e/f5/32/KST_2403_CM509V6EU_Konformitaetserklaerung.pdf
